Ubiquiti - Wave-AP-Micro-EU - Punto de acceso PtMP de 60 GHz de amplia cobertura, rendimiento total máximo: 5 Gbps (dúplex de 2,5 Gbps), cobertura del sector de 90°, radio de respaldo resistente a la intemperie de 5 GHz (rendimiento máximo: 800 Mbps), (1) puerto WAN de 2,5 GbE, GPS y Bluetooth integrados
Número: ART-193151 EAN: 0810010078742 MPN: Wave-AP-Micro-EU
Descripción:

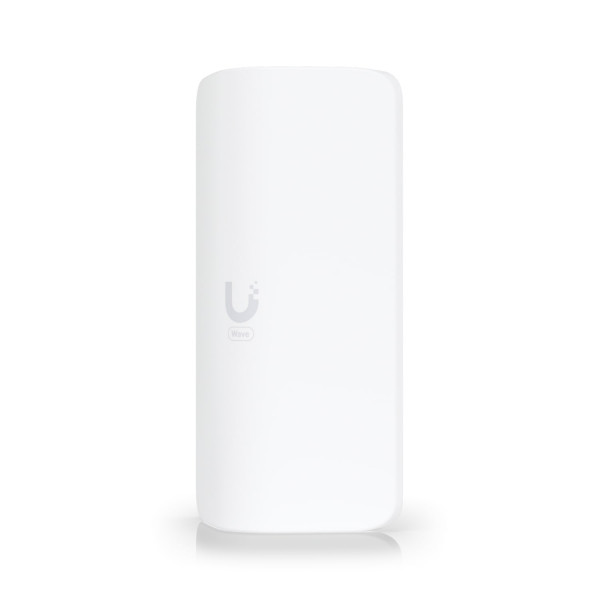

Ubiquiti - Wave-AP-Micro-EU - El Ubiquiti Wave AP Micro es un punto de acceso exterior de alto rendimiento que opera en la banda de frecuencia de 60 GHz, diseñado específicamente para aplicaciones punto a multipunto (PtMP). Presenta un diseño compacto, con unas medidas de 284 x 156 x 76 mm y un peso de 1,3 kg. El dispositivo está fabricado con materiales duraderos, como aleación de aluminio y policarbonato estabilizado contra rayos UV, lo que le permite soportar condiciones ambientales adversas, con clasificación IPX6.
Características:
- Radio de backup a 5 GHz
- Cobertura sectorial de 90°
- Alcance de enlace: hasta 1 km con Wave Pico
- Alcance de enlace: hasta 4 km con Wave Nano
- Alcance de enlace: hasta 6 km con Wave Pro
- Alcance de enlace: hasta 6 km con Wave Long Range
- Compatibilidad con modo Bridge
- Antenna GPS integrada
- Compatibilidad con la planificación de enlaces a través del Centro de Diseño del ISP
Ficha Técnica
Ficha Técnica
| Mechanical | |
|---|---|
| Hardware | |
| Software | |
| System | |
| RF | |
| Back-Up RF | |
| LEDs | |
| Dimensions | 284 x 156 x 76 mm (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure material | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | Stainless steel, UV stabilized polycarbonate |
| Pole mount diameter | 35 to 60 mm (1.4 to 2.4") on pipe outer diameter |
| Wind loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, Link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. |
| Network | Bridge mode |
| Application requirements | UISP web: Version 2.2.11 and later UISP mobile iOS™: Version 2.25.1 and later UISP mobile Android™: Version 2.27.5 and later |
| Total throughput | 5 Gbps |
| Supported clients count | 31* *FW version 3.4.0 and later. |
| Max. range | Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| Operating frequency* | 57–71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz *FW version 3.3.0 and later. |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 20 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 90° Elevation: 3 dB 7° |
| Electrical downtilt | 0° |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 13.5 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 6 dB 90° Elevation: 6 dB 25° |
| Cross-pol isolation | 10 dB |
| Electric downtilt | 0° |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least(4) GPS satellite signal |
| Link | Blue: 60 GHz link White: 5 GHz link |
