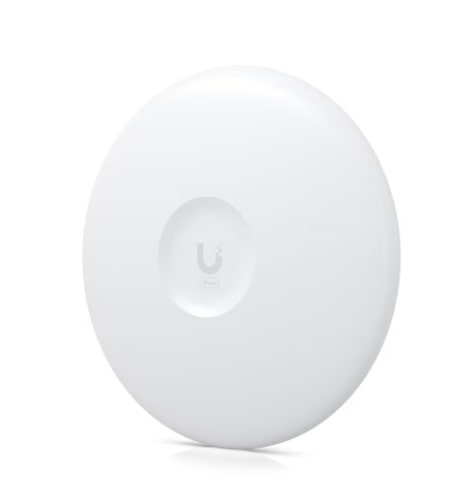

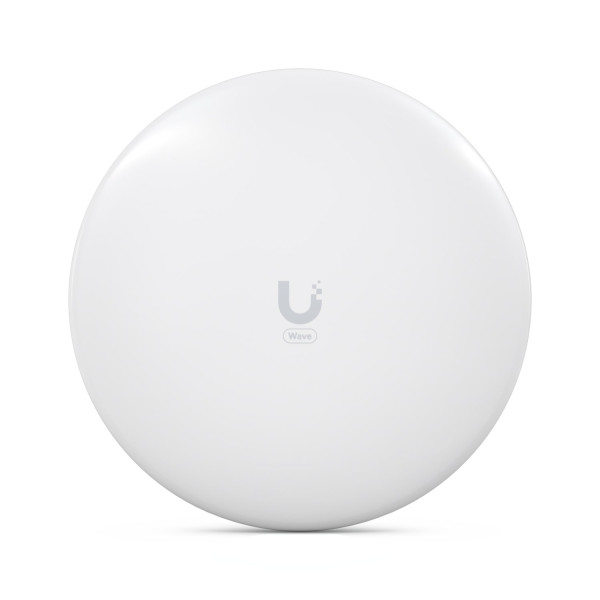

Ubiquiti - Wave-Nano-EU - Estación PtMP de 60 GHz, Rendimiento total máximo: 2 Gbps (dúplex de 1,5 Gbps), radio de respaldo resistente a la intemperie de 5 GHz (Rendimiento máximo: 800 Mbps), (1) puerto RJ45 GbE, GPS y Bluetooth integrados
Número: ART-185858 EAN: 0810010078988 MPN: Wave-Nano-EU
Descripción:
Ubiquiti - Wave-Nano-EU - Estación punto a multipunto (PtMP) de 60 GHz que destaca por ofrecer conectividad inalámbrica fiable y de alta velocidad. Este dispositivo utiliza la tecnología Wave de Ubiquiti, que garantiza un rendimiento eficiente con un rendimiento total de 2 Gbps (1 Gbps dúplex). Está diseñado específicamente para entornos que requieren conectividad de largo alcance, ofreciendo un alcance máximo de enlace de hasta 5 km al conectarse con el Wave AP y hasta 4 km con el Wave AP Micro.
Características
- Radio de backup de 5 GHz
- Alcance de conexión con Wave AP: hasta 5 km
- Alcance de conexión con Wave AP Micro: hasta 4 km
- Compatible con modo puente/router
- Antena GPS integrada
- Soporte para la planificación de la conexión a través del Centro de Diseño del ISP
Ficha Técnica
Ficha Técnica
| Mechanical | |
|---|---|
| Hardware | |
| Software | |
| System | |
| RF | |
| Back-Up RF | |
| LEDs | |
| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5") |
| Weight | Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
| Enclosure material | Aluminum alloy, UV stabilized plastic |
| Mount material | Aluminum alloy, UV stabilized plastic |
| Pole mount diameter | 25 to 63.5 mm (1 to 2.5") on pipe outer diameter |
| Wind loading | 127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 20W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Operating mode | PtMP station, PtP* *FW version 3.2.0 and later. |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping** *FW version 3.3.0 and later. **FW version 3.4.0 and later. |
| Network | Bridge/Router* mode *Router is available in PtMP station mode only. |
| Application requirements | UISP: Version 1.4.5 and later |
| Total throughput | 2 Gbps |
| Max. range | 5+ km |
| Encryption | WPA2-PSK (AES) |
| Operating frequency* | 57–71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080, 540* MHz *FW version 3.3.0 and later. |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 41 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 19 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 14° Elevation: 3 dB 14° |
| Cross-pol isolation | 20 dB |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links | White: 5 GHz link Blue: 60 GHz link |
