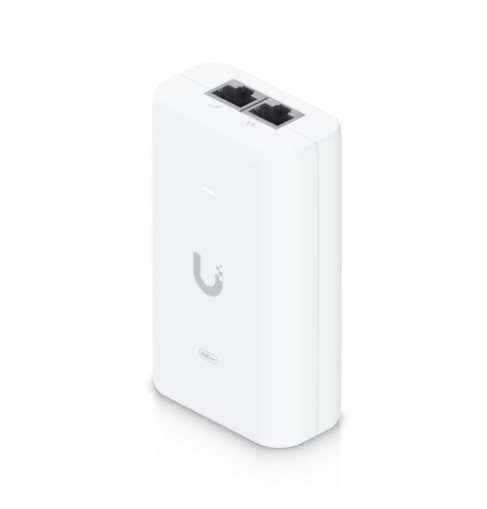

Ubiquiti - PoE++ Adapter. A power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies
Número: ART-199294 EAN: 0810084691762 MPN: U-PoE++-EU
Descripción:
Ubiquiti UISP U-PoE++. Tipo de interfaz Ethernet: Gigabit Ethernet. Estándares de red: IEEE 802.3at. Color del producto: Blanco. Certificaciones: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS. Alimentación a través de Ethernet (PoE): 48 V. Potencia de salida: 60 W. Voltaje de entrada: 100-240 V. Ancho: 63 mm. Profundidad: 34 mm. Altura: 106 mm. Cantidad de productos incluidos: 1 unidad.
Características:
Proporciona hasta 60 W de PoE++
Protección contra sobretensiones, impulsos de pico y sobrecorriente
Incluye entrada de datos RJ45, cable de CA con conexión a tierra y salida PoE++t
Indicador LED para monitorización de estado
Vistas frontal y trasera:
Ficha Técnica
Ficha Técnica
Dimensions
106 x 63 x 34 mm
(4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output Voltage
48V DC at 1.25A
Rated Voltage
100—240V AC at 50/60Hz
LAN Activity Indicator
—
Gigabit LAN Port
✓
Remote Reset Capability
—
Reset Button
—
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector
IEC-320 C6
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
1.3A @ 120V AC
Inrush Current
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency
85+%
Switching Frequency
65 kHz
Output Ripple
1% Max.
Line Regulation
≤ 1%
Load Regulation
≤ 3%
Max. PoE+ Wattage per Port by PSE
60W
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Power Method
Universal AC input, 100—240V AC, 50/60 Hz
Power Supply
AC/DC
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Supported Voltage Range
100—240V AC
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
