Ubiquiti ART-139876
UDM-Pro-EU EAN 0817882027373
Se ha añadido el artículo

Ubiquiti - UDM-PRO - UniFi Dream Machine Pro con procesador ARM® Cortex®-A57 de cuatro núcleos a 1,7 GHz, 4 GB de RAM DDR4, 1 HDD, NVR de 3,5", rack 1U, más de 100 dispositivos, más de 1000 clientes, LAN con 8 puertos GbE RJ45 y 1 puerto 10G SFP+, WAN con 1 puerto GbE RJ45 y 1 puerto 10G SFP+, rendimiento IDS/IPS de 3,5 Gbps, CA/CC, interno, 50 W, consumo máximo de energía de 33 W, todo UniFi Application Suite

Número: ART-139876 EAN: 0817882027373 MPN: UDM-Pro-EU

Descripción:

Ubiquiti - UDM-PRO - Dream Machine Pro (UDM Pro) es una consola UniFi OS de nivel empresarial que ofrece una experiencia de red escalable y una plataforma integral para ejecutar múltiples aplicaciones. UDM Pro es una consola de montaje en rack 1U equipada con un rápido procesador de cuatro núcleos a 1,7 GHz. UniFi Dream Machine PRO es un servidor multifuncional diseñado para gestionar cualquier dispositivo UniFi dentro de redes inalámbricas y dispositivos de videovigilancia de la serie. Además de las funciones de gestión, el modelo también combina las capacidades de un switch y un router USG, lo que hace que el UDM-PRO sea ideal para implementar proyectos complejos que incluyen dispositivos de múltiples líneas UniFi.

Caracteristicas:

  • Incluye el conjunto completo de aplicaciones de gestión de dispositivos UniFi.
  • Enrutamiento a más de 3,5 Gbps.
  • (1) 10G SFP+,
  • (8) puertos LAN RJ45 GbE.
  • (1) 10G SFP+,
  • (1) puertos WAN RJ45 GbE.
  • Pantalla táctil de 1,3"
  • Bahía para disco duro de 3,5"

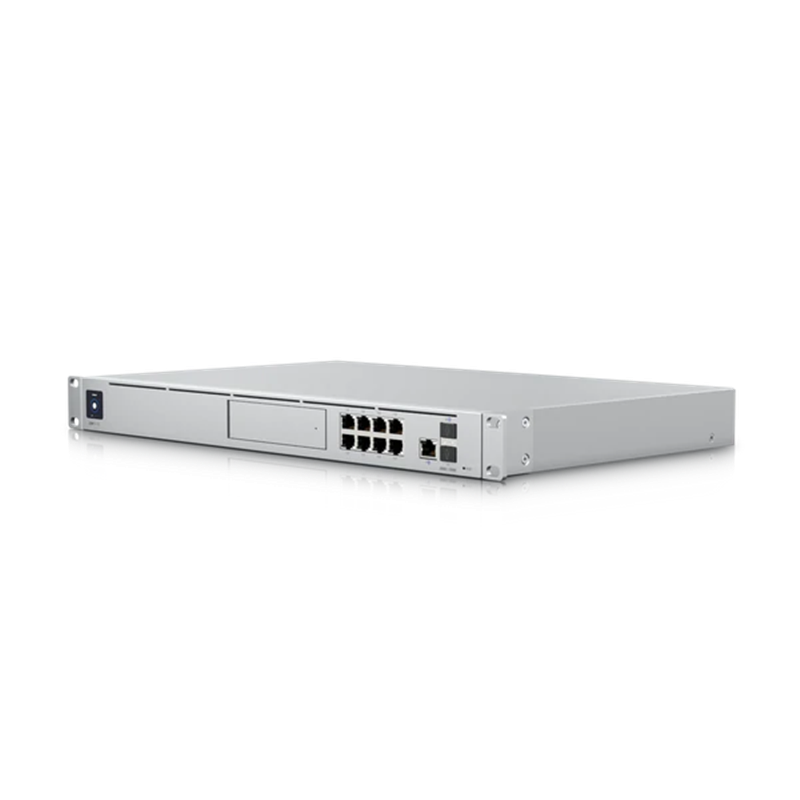

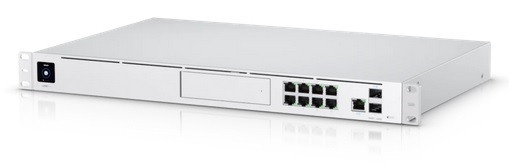

Vista frontal y trasera:



Ficha Técnica Ficha Técnica
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite



Network


Protect


Access


Talk


Connect
Managed UniFi Devices
100+
Managed Cameras
(24) HD (14) 2K (8) 4K
Managed Access Hubs
150
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+ (1) GbE RJ45
Port Layout



1 GbE RJ45
9 (1G/100M/10M)


10G SFP+
2 (10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup


Stateful Firewall
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation

License-Free SD-WAN
Site-to-Site VPN



Site Magic


IPsec


OpenVPN
VPN Server



Identity Endpoint One-Click VPN


Teleport Zero-Configuration VPN


WireGuard


OpenVPN


L2TP
VPN Client



OpenVPN


WireGuard

Multi-WAN Load Balancing
Shadow Mode (VRRP) High Availability
Dynamic Routing



OSPF


BGP
Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
Customizable DHCP Server
IPv6 ISP Support
IGMP Proxy

NVR Storage
(1) 3.5" NVR HDD bay
Max. Power Consumption
33W
Power Method
(1) Universal AC input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input
Power Supply
AC/DC, internal, 50W
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB
Weight
3.9 kg (8.6 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet Bluetooth
LEDs



Ethernet


SFP+


RPS


PSU


HDD
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC, Anatel, SRRC
